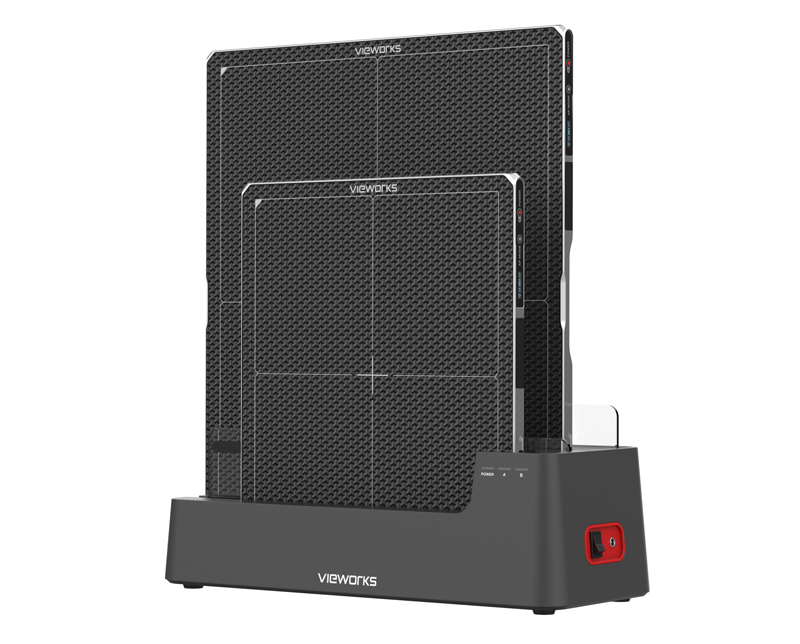

The VIVIX-S 2530FW is a compact, high-resolution flat panel detector designed for advanced digital radiography in confined imaging environments. With its lightweight, wireless design and fast image acquisition, it’s ideal for use in extremity imaging, pediatrics, and mobile applications. Built with powerful imaging performance and seamless connectivity, it delivers exceptional image clarity with minimal dose.
Specifications
Model NameFXRD-2530FAW
Technologya-Si Flexible TFT
ScintillatorFlexible Csl
Pixel Pitch99 ㎛
Spatial Resolution5.0 lp/㎜
Pixel Matrix2524 x 3036 pixels
Image Size25 ㎝ × 30 ㎝
Grayscale16 bits
Image Acquisition Time≤ 3 s
Recommended Cycle Time5 s
Data InterfaceGigabit Ethernet IEEE 802.11n / ac
X-ray Generator InterfaceDR trigger Mode AED Mode Software Trigger
Dimensions28.3 ㎝ × 33.3 ㎝ × 1.5 ㎝
Weight1.7 kg (1battery)
BatteryLithium Ion 3400mAh x 1 8 h (standby) * 1,500 images at a 15-second cycle.
Dust and Water ResistantIP67
X-ray Voltage Range40 – 150 kVp
Operating Environment0°C to 40°C 5 % to 90 % RH (non-condensing)
Power ConsumptionNormal: Max. 24 W Charging: Max. 50W
